Single-Phase Pad-Mounted Distribution Transformer
Low-profile, highly secure step-down power for modern suburban developments and light commercial connections.

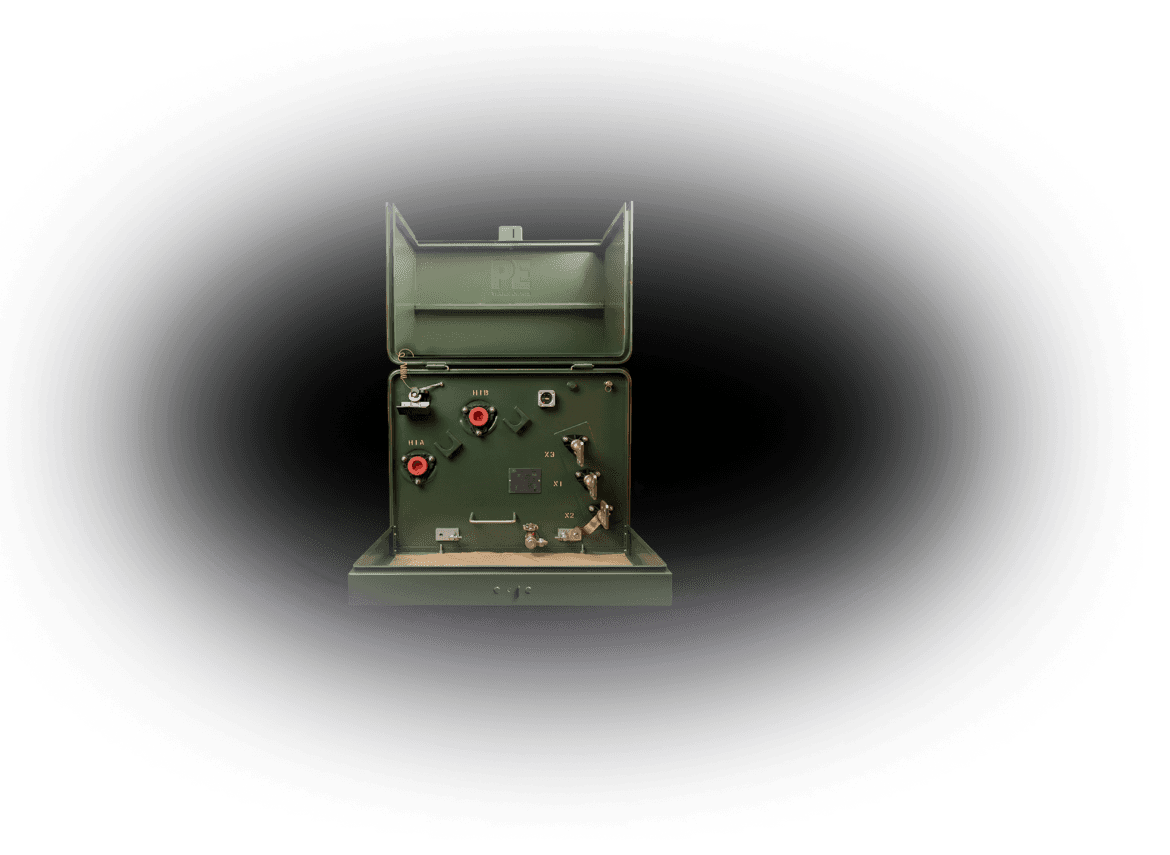

Core Components & Advantages
Tank
Heavy-duty steel enclosure engineered for severe outdoor weather resistance.
Core & Coil Assembly
Precision-wound core and conductors engineered for maximum efficiency.
Bayonet Fuse
Draw-out primary fuse offering quick overcurrent thermal protection.
Drip Shield Assembly
Protective guard preventing fluid drips onto active components during servicing.
Fuse Holder
Heavy-duty internal mounting receptacle accommodating primary protective fuses.
Isolation Link
Internal backup fault interrupter providing high-energy fault clearance.
Link Assembly
Robust internal connection assembly linking key circuit branches.
Pressure Relief Valve
Automatic safety valve venting excess gas and pressure buildup.
Critical Infrastructure Features (7)
Flip-Top Hood & Dead-Front Safety
Lockable, hinged hood secures HV interfaces with 180° crew access while shielding the public.
304 Stainless Steel Base Sill
Corrosion-resistant bottom sill prevents rust from standing water on concrete pads.
Dual-Protection Fuse Coordination
External Bayonet fuse paired with an internal Isolation Link for comprehensive overcurrent protection.
Secondary Set-Screw Terminals
High-conductivity 8-hole connectors deliver low-resistance, vibration-proof terminations.
Loadbreak & Dual-Voltage Switches
External controls for fast line de-energization and quick voltage toggling.
Loop-Feed Topology (H1A/H1B)
Dual 200A high-voltage bushings enable seamless ring-main integration without interrupting downstream power.
Low-Loss Amorphous Core Ribbon
Magnetic amorphous core drastically reduces continuous 24/7 no-load losses.
Additional Benefits
Underground Integration
Designed for ground-level pad placement on underground distribution grids.
Lower Operating Costs
Ultra-high efficiency (>99.25%) reduces lifetime energy losses.
Continuous Reliability
Loop-feed configurations allow line servicing without interrupting downstream power.
Eco-Friendly
Natural ester fluid options minimize environmental impact in the event of leaks.
Details
General Specifications
Rating
25 to 250 kVA
Primary Voltage
As per customer specification
Secondary Voltage
As per customer specification
Frequency
60 Hz
Core Material
Amorphous / Silicon
Conductor
Aluminum / Copper
Insulating Oil
Natural Esters / Mineral Oil
Impedance
2.1% (1.8%–2.2%)
DOE Efficiency Standard (2016 & 2029)
>99.25%
Applied Standard
IEEE Std C57.12.00
